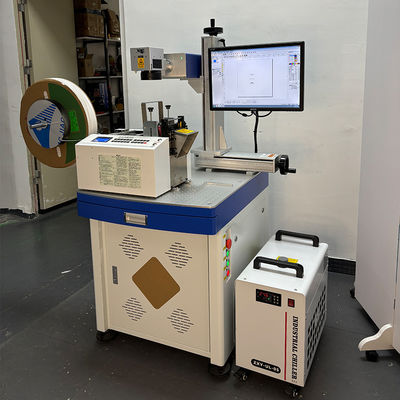

Pipeline Specific Fiber Laser Marking Machine with 0.01mm High-precision and Dynamic Follow Marking for Continuous Production

MOQ:	1
Supply Ability:	3000

Detail Information

Product Description

Detail Information

Condition:

New

Graphic Format Supported:

BMP,PLT,AI,DXF,DST

Application:

Laser Marking

Cooling Mode:

Air Cooling

Control Software:

EZCAD,JCZ Software,EZCAD Control Software,ThorX6.2.B0407,EZ Software

Laser Wavelength:

1064nm,1064nm Laser Wavelength

Laser Power:

10watt 20watt 30watt 50watt,20W /30w/ 50w(Optional),20W 30W 50W 100W,20W,10W Or 20W Or 30W Optional

Applicable Material:

Metal Plastic,Aluminum,Cooper,iron,Stainless Steel

Laser Source:

Raycus,Raycus Laser Source,IPG,CAS,MAX

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Overseas Service Center Available

Supply Ability:

3000

Highlight:

0.01mm High-precision Fiber Laser Marking Machine

Pipeline Specific Laser Marking Machine

Dynamic Follow Marking Laser Machine

Product Description

Pipeline Specific Laser Marking Machine Dynamically Follows And Marks 0.01mm High-precision All Material Compatible Consumables Free

High-Precision Continuous Marking Solution for Pipeline Production

Our laser online tube engraving and marking machine revolutionizes pipeline production with zero-stop continuous marking, multi-material adaptation, and exceptional precision for industrial identification needs.

Core Features

• Continuous Production Marking: Dynamic tracking technology matches pipeline speeds of 0-10m/min with ±0.01mm positioning accuracy, eliminating production stops.
• Multi-Material Compatibility: Works with PVC, PPR, PE, steel, aluminum-plastic composite pipes and more, with automatic power adjustment (50W-100W).
• Intelligent Operation: Industrial PLC control with 7-inch touchscreen, pre-loaded industry templates, and storage for 1000+ marking solutions.
• Durable Construction: IP54-rated housing with imported fiber laser generator (100,000-hour lifespan) and minimal maintenance requirements.
• Customizable Marking: Adjustable head for pipes 10mm-300mm diameter, supporting circumferential, axial, and spiral marking patterns.
• Eco-Friendly Operation: Ink-free process consumes only 0.8kWh/hour, with ISO9001 and CE certifications for environmental compliance.

Transform Your Pipeline Production Efficiency

Eliminate production downtime and costly consumables with our advanced laser marking solution designed specifically for continuous pipeline manufacturing.

Key Benefits

✓ 60% Efficiency Increase: Dynamic tracking enables continuous marking without production line stops
✓ Permanent Markings: Laser-etched identifiers resist friction, acid, alkali, and peeling
✓ Material Intelligence: Automatic power adjustment for optimal marking on all pipe materials
✓ Quick Operation: Intuitive touchscreen interface with industry templates for fast deployment
✓ 90% Cost Savings: No consumables and minimal electricity usage compared to ink systems
✓ Digital Integration: ERP/MES system compatibility for real-time data tracking and traceability

Technical Specifications

Marking Speed	0-10m/min (matches production line speed)
Positioning Accuracy	±0.01mm
Minimum Character Size	0.1mm
Pipe Diameter Range	10mm-300mm
Laser Power	50W-100W (auto-adjusting)
Power Consumption	0.8kWh/hour
Environmental Rating	IP54 dustproof/waterproof
