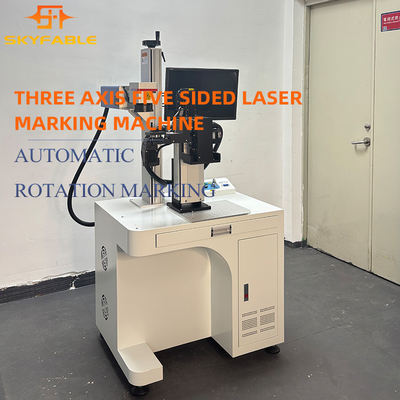

5-Axis Laser Marking Machine for Complex Surfaces with MES Interface

MOQ:	1
Supply Ability:	2000

Detail Information

Laser Power:

20W/30W/50W

Operating System:

Windows

Cooling Method:

Air Cooling/Water Cooling

Support File Format:

PLT, DXF, AI, BMP, JPG, Etc.

Marking Area:

110mm X 110mm

Focal Length:

160mm/254mm/330mm

Supported File Formats:

PLT, PCX, DXF, BMP, Etc.

Supply Ability:

2000

Highlight:

Product Description

Intelligent Manufacturing Upgrade Plan: Three Axis Five Surface Laser Marking Machine with MES System Interface

Product Specifications

Five Axis Linkage Laser Marking Machine

Five axis linkage without blind spots processing
Sports system: X/Y/Z linear axis + A/C rotation axis, achieving 360° omnidirectional marking
Breaks through limitations of traditional three-axis equipment for direct processing of complex surfaces

Core Capabilities

Material Adaptability

Material Type	Laser Parameter	Application Example
Metal	1064nm fiber laser/high-power mode	Stainless steel instrument traceability code
Plastic	355nm UV laser/low-power mode	Electronic components invisible marking
Glass Ceramic	CO₂ laser/pulse modulation	Optical lens anti-counterfeiting etching

Intelligent Production Integration

Visual Positioning System: CCD camera automatically recognizes workpiece position (accuracy ±0.05mm)
Dynamic Compensation: Adapts to fixture error and incoming material deviation
Adaptive Processing: Laser focus automatically tracks surface with Z-axis real-time focusing
Workpiece height compatible with 50-300mm (no manual calibration required)

Typical Applications

QR code marking for automotive hot formed steel parts (high temperature resistance, curved surface positioning)
Aircraft engine blade serial number engraving (high hardness alloy curved surface)
Medical device precision scale marking
